Description

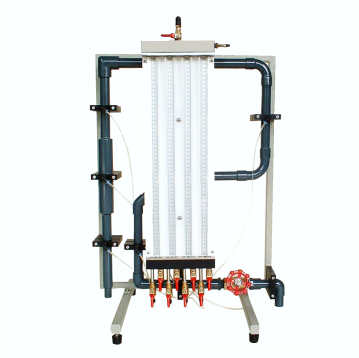

For measuring pressure drops at various flow rates when water flows through different pipe bends, with sudden expansion and contraction. Bends and fittings connected in series with pressure tappings on both sides of each device. Features water manometer with vent valve connected to tappings. Valve at outlet is used to control the flow. Optional gate valve with pressure gauges. Often used with the FM 100 Hydraulics Bench.
