Description

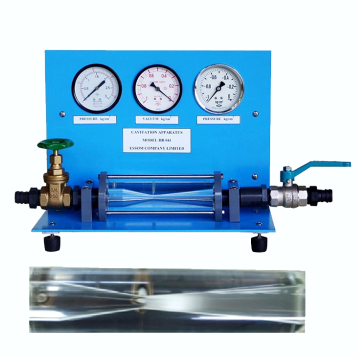

Demonstrates liquid vaporization under flow. Test section is a transparent acrylic rectangular Venturi with dark background and pressure tappings at the throat and upstream. Pressure tappings are connected to pressure gauges with pressure isolation valves. Flow is measured by flow meter with control valve. Test section and gauges mounted on panel.
