Description

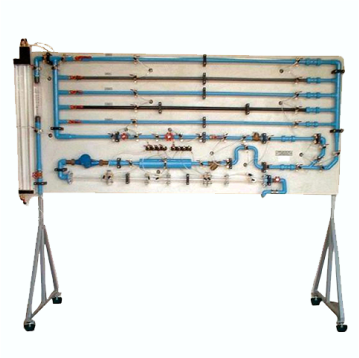

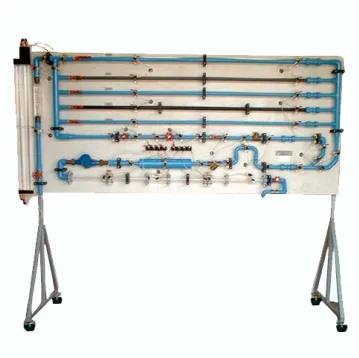

For the study of friction loss in various pipes, pipe fittings, valves, and primary flow measuring devices. Features include water manometer, pressure tapping w/quick connections, water meter and variable area flow meter, Venturi meter, orifice meter, clear acrylic pitot tube. Mounted components include linear pipes, regular elbows, bends, globe, ball gate and check valves, T-section, in-line strainer, sudden expansion/contraction. Often used in conjunction with FM 100 Hydraulics Bench.
