Description

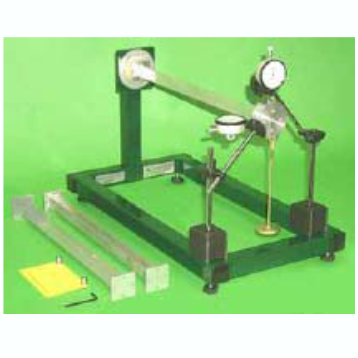

Bench-top frame for experiments with loading cantilevers and determining the shear center for an open thin section. Test sections (one of which is bolted to the apparatus spindle) can be rotated to any angle. The angle is indicated by a degree increment scale. Disc at free end for load application. Two dial gauges. Load hanger. Weights set included.

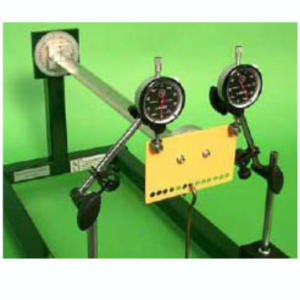

Apparatus arranged for shear center experiments:
