Description

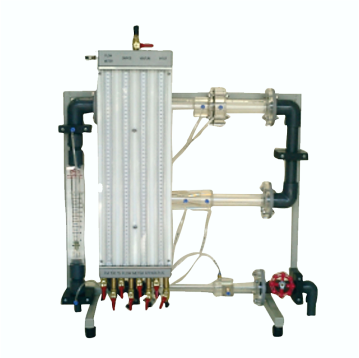

Used in conjunction with the FM 100 Hydraulics Bench to aid in the study of primary flow measuring devices (Venturi, orifice plate, pitot tube, and variable area flow meter). Device is made from clear acrylic, connected in series. Pressure drop across each device is connected to a water manometer bank with vent and a hand air pump.
